Wire Mesh Decking Panels Manufacturer & Custom Supplier
We manufacture welded wire mesh panels for pallet rack decking and industrial storage systems. Standard and custom configurations are available for panel dimensions, mesh opening, wire diameter, support channels, edge construction, and surface finish.
Since 2014, production has covered wire mesh products for international markets, supported by automated production equipment, technical personnel, testing capabilities, and customized packaging solutions.
For wire mesh decking, the rack structure and required load are reviewed together with the panel specification. This allows the finished deck to match the actual beam arrangement, storage depth, and handling conditions.
-
![Step-Down Wire Decking]()
Step-Down Wire DeckingStep-Down Wire Decking is a welded steel mesh panel installed across pallet rack beams to form a load-supporting storage surface. Its formed support channels sit below the mesh and engage with -
![Flared Wire Decking]()
Flared Wire DeckingFlared Wire Decking is a welded steel mesh panel installed across pallet rack beams to create a load-supporting storage surface. The flared support channels extend beyond the panel ends, allowing the -

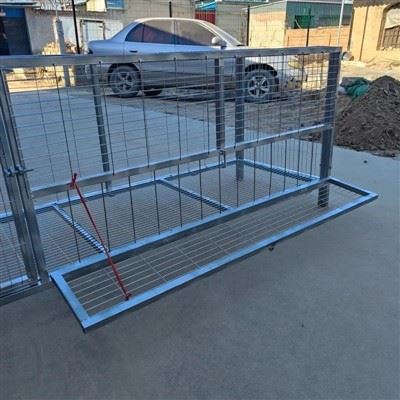

![Drop-In Wire Decking]()
Drop-In Wire DeckingDrop-In Wire Decking is a welded steel mesh panel installed between pallet rack beams to form an open storage surface. The panel combines welded wire mesh with formed support channels that transfer -
![Pallet Rack Wire Decking]()
Pallet Rack Wire DeckingPallet Rack Wire Decking is a welded steel mesh panel installed between pallet rack beams to form a storage surface. It supports pallets, cartons, bins and other stored materials while maintaining an -

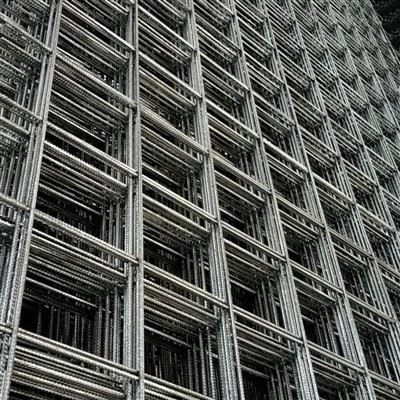

![Heavy-Duty Rack Wire Decking]()
Heavy-Duty Rack Wire DeckingThe main selection factors are panel width and depth, beam span, mesh opening, wire diameter, support-channel quantity, load rating and surface finish. These dimensions should be confirmed against -
![Warehouse Rack Wire Decking]()
Warehouse Rack Wire DeckingWarehouse Rack Wire Decking is a welded steel mesh panel fitted across pallet rack beams to create a load-supporting storage surface. It is used for pallets, cartons, bins and other warehouse
Key Product Benefits
Consistent Welded Grid
Resistance-welded intersections maintain the specified mesh opening across the panel. Regular spacing creates a predictable storage surface for pallets and smaller packaged goods.
Direct Load Transfer
Support channels beneath the mesh provide defined bearing points toward the rack beams. Their number and position can be selected according to panel dimensions and loading requirements.
Open Storage Surface
The mesh construction keeps the rack level open rather than creating a solid sheet surface. This supports visibility between levels and allows air and sprinkler water to move through the openings.
Finish Selection
Galvanized and coated finishes provide different surface options for storage environments and handling conditions. The required finish can be specified together with the panel dimensions and structural configuration.
Wire Mesh Decking Panel Types
Step-channel panels are used with compatible stepped rack beams. The channel profile sits within the beam arrangement while the mesh surface forms the storage deck. Beam dimensions should be confirmed before production.
Flared channel construction provides a wider bearing arrangement for compatible rack systems. The beam profile, panel depth, channel position, and required load should be checked together when selecting this configuration.
Waterfall edges extend downward over the front or rear beam area. This construction helps position the panel on the rack and provides a defined edge around the storage surface.
Flat flush panels provide a level edge without a pronounced waterfall profile. They can be used for selected shelving, picking, and hand-loading applications where a flush deck surface is required.
Technical Specifications
|
Item |
Typical Specification |
|
Material |
Low-carbon steel wire |
|
Mesh Opening |
50 × 50 mm, 50 × 100 mm, 50 × 150 mm |
|
Wire Diameter |
4.5 mm, 5.0 mm, 5.5 mm |
|
Panel Width |
880–1340 mm |
|
Panel Depth |
600–1200 mm |
|
Support Channels |
2–4 channels |
|
Channel Type |
U-channel, step, flared or custom |
|
Edge Configuration |
Flat, flush or waterfall |
|
Surface Finish |
Galvanized, powder coated or specified finish |
|
Load Rating |
Project-specific; subject to panel and rack configuration |
Pallet Rack Compatibility
Beam Profile
The beam profile determines how the decking panel bears on the rack. Step beams, box-style beams, and other structural arrangements can require different channel positions or edge constructions.
Deck Dimensions
Provide the clear beam-to-beam width and rack depth when selecting a panel. Correct dimensions help maintain the required bearing area while keeping the deck clear of adjacent rack components.
Load Requirement
The expected pallet or stored load should be supplied with the panel dimensions. Load information allows the mesh, wire diameter, support channels, and panel structure to be reviewed as one specification.
Applications
Pallet Rack Storage
Wire mesh decking is used between rack beams to support palletized products, cartons, containers, and general warehouse inventory.
Distribution Warehouses
Open mesh decking suits distribution areas where rack visibility, airflow, and accessible storage levels are required.
Manufacturing Facilities
The panels can be used on industrial racks for raw materials, components, work-in-process goods, and finished products.
Picking & Hand-Loading Areas
Flat or flush configurations can provide a defined storage surface for cartons, components, bins, and manually handled products on shelving or rack systems.
Why Choose Us
Direct Manufacturing
Automated production equipment and established manufacturing processes support consistent wire mesh panel production.
Custom Specifications
Panel size, mesh opening, wire diameter, support channels, edge details, and surface finish can be specified for the required rack configuration.
Quality Control
Finished panels are checked for dimensions, mesh geometry, support structure, and surface condition against the confirmed specification.
Export Support
Packaging, loading, and shipment preparation can be arranged according to panel dimensions, order quantity, and international delivery requirements.
Custom Wire Mesh Decking
Custom Dimensions
Panel width and depth can be matched to the actual rack bay instead of relying on a single fixed panel size. This is useful when existing rack dimensions vary between warehouse areas.
Custom Mesh & Wire
Mesh opening and wire diameter can be selected according to the stored product, panel dimensions, and required load condition. Smaller openings can also be considered where smaller packages or containers require additional surface support.
Custom Support Details
Support channel type, quantity, position, and edge construction can be adjusted for different rack beam arrangements. These details should be confirmed before production to maintain the required bearing position.
Drawing-Based Production
Rack drawings, photographs, existing deck measurements, and specification sheets can be reviewed during quotation. Clear dimensional information helps reduce specification errors before production begins.
Manufacturing & Quality Control
Wire Processing
Steel wire is prepared to the specified diameter before mesh production. Wire dimensions form part of the confirmed product specification.
01
Mesh Welding
Automated welding equipment is used to create regular mesh openings and welded intersections across the panel. Production settings are controlled according to the required mesh configuration.
02
Structural Assembly
Support channels and edge components are positioned according to the confirmed panel design. Welded connections and channel placement form the main structural details beneath the mesh surface.
03
Final Inspection
Finished panels are checked for dimensions, mesh opening, wire configuration, support channel arrangement, edge construction, and surface condition. Packaging requirements are also reviewed before shipment.
04
Packaging & International Supply
Stacked Panels
Panels are arranged into stable bundles according to their dimensions and order quantity. Controlled stacking simplifies handling during loading, unloading, and warehouse transfer.
Secured Packing
Strapping and protective packing help keep bundles stable during transportation. Packaging specifications can be adjusted according to panel size and shipment requirements.
Container Loading
Loading arrangements can be planned according to panel dimensions, bundle quantity, order volume, and available container space. This helps organize the shipment before dispatch.
Product Specifications
Panel dimensions, mesh opening, wire diameter, support channels, edge configuration, surface finish, and confirmed load requirements can be recorded in the product documentation.
Inspection Documentation
Production and inspection records can be prepared according to the confirmed order specification and customer requirements.
Document Confirmation
Any required certificate, test record, dimensional record, or product document should be confirmed before production. This keeps the documentation aligned with the actual supplied configuration.
After-Sales Support
Specification Review
Rack measurements, photographs, drawings, and existing deck information can be reviewed when further product clarification is required.
Order Follow-Up
Confirmed specifications can be checked against production and shipment preparation requirements to keep the supplied panels consistent with the approved order.
Product Support
Post-delivery questions can be reviewed against the confirmed product configuration, order information, and related documentation.
FAQ
Q: What information is needed for a quotation?
A: Provide the rack beam profile, panel width and depth, mesh opening, wire diameter, required load, surface finish, and quantity. A rack drawing or photograph can also help confirm the required configuration.
Q: Can wire mesh decking be made to custom dimensions?
A: Yes. Panel dimensions, mesh opening, wire diameter, support channels, and edge construction can be adjusted according to the rack structure and application requirements.
Q: What mesh openings are available?
A: Common configurations include 50 × 50 mm, 50 × 100 mm, and 50 × 150 mm. Other mesh openings can be reviewed according to the required panel structure and stored product.
Q: How do I select the correct support channel?
A: Start with the rack beam profile and required bearing position. The suitable channel type, quantity, and location can then be reviewed together with panel dimensions and loading requirements.
Q: Can I send a drawing before ordering?
A: Yes. A rack drawing, photograph, existing deck measurement, or specification sheet can be provided for review before quotation. This helps confirm dimensions, support details, and the required panel configuration.
Q: How is the load capacity determined?
A: Load capacity depends on panel dimensions, wire diameter, mesh opening, support channel arrangement, rack span, and load distribution. The final rating should be confirmed for the complete panel and rack configuration.
Request a Wire Mesh Decking Specification Review
Send your rack dimensions, beam profile, required load, panel size, mesh opening, quantity, or drawing. The required decking configuration can then be reviewed for quotation and production.
