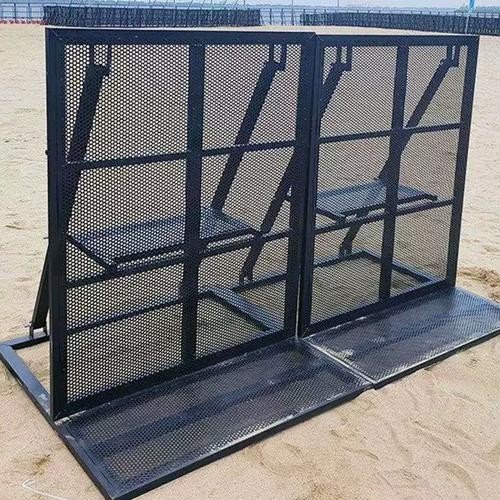

Crowd control barricade is a heavy-duty temporary security barrier made from welded Q235 carbon steel tubing. Compared with standard metal barriers, it has a reinforced frame, wider triangular bases and perforated steel panels. N-shaped stainless steel locking pins connect multiple units to form a continuous barrier. It is used for crowd separation, temporary security perimeters, factory zoning and temporary isolation around flammable and explosive areas. The modular design allows for quick assembly and removal, and the panels can be stacked for storage and reused across different projects.
Product Specifications
|
Item |
Specifications |
|
Main material |
Q235 low-carbon steel (carbon steel); 304 stainless steel available for special environments |
|
Standard dimensions |
Length 2000mm × Height 1200mm (main stock); optional 2000×1000mm / 2000×1400mm / 2000×1500mm |
|
Base width |
1080mm (triangular widened base) |
|
Top beam |
Φ60 round tube, wall thickness ≥2.0mm |
|
Vertical tubes / bottom frame / diagonal braces |
40×60 square tube, wall thickness ≥2.0mm |
|
Protective panel |
Perforated steel plate, thickness 1.0–1.5mm, round holes for ventilation and pressure relief |
|
Connection method |
N-type stainless steel pin (Φ10mm) for linking and locking |
|
Single panel weight |
Approx. 55kg (standard heavy-duty model) |
|
Surface treatment |
Electrostatic powder coating; optional hot-dip galvanizing + powder coating double-layer anti-corrosion |
|
Standard color |
Matte black; customizable in gray, white and yellow |
|
Impact resistance |
In linked configuration, designed to withstand sustained crowd pushing and low-speed vehicle impact; actual performance depends on layout, counterweights, ground anchoring and site conditions |
|
Operating temperature |
-30°C to +80°C |
|
Accessories |
Connecting pins, counterweight blocks, ground anchoring/fixing parts, warning reflective strips |
Product Features

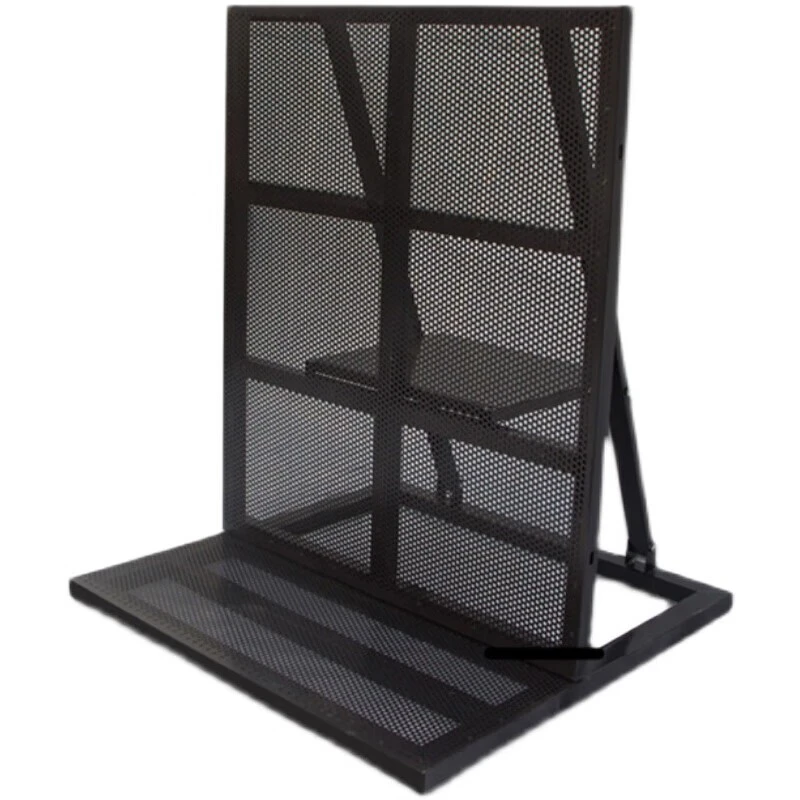

High-Strength, Thickened Frame
Features a Φ60 round pipe top crossbar and 40×60 rectangular tubing for vertical pipes, base frames, and braces-all with a wall thickness of ≥ 2.0mm. The triangular support structure provides excellent resistance against pushing and impact, ensuring high overall stability when units are connected.

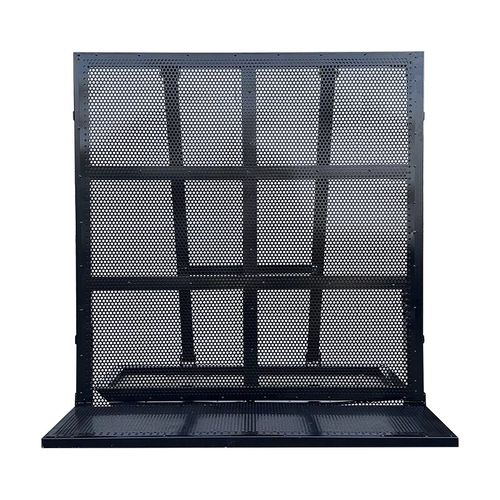

Perforated Pressure-Relief Panels
Constructed from 1.0–1.5 mm thick perforated steel, these panels allow for ventilation and pressure relief, reducing the risk of damage to the barrier system from shockwaves and preventing large-scale fragmentation.
N-Type Quick-Connect Latching System
Utilizes Φ10 mm stainless steel pins for connection-no bolts or welding required. Panels can be assembled or disassembled by a single person. Each panel weighs approximately 55 kg; it is recommended that two people handle the movement, or that appropriate handling equipment be used.
Durable, Corrosion-Resistant Outdoor Design
Finished with an electrostatic powder coating to withstand exposure to rain and sunlight. An optional dual-layer protection-hot-dip galvanizing combined with powder coating-is available, making the units ideal for long-term outdoor use and recurring project deployments.
Flexible Configuration and Customization

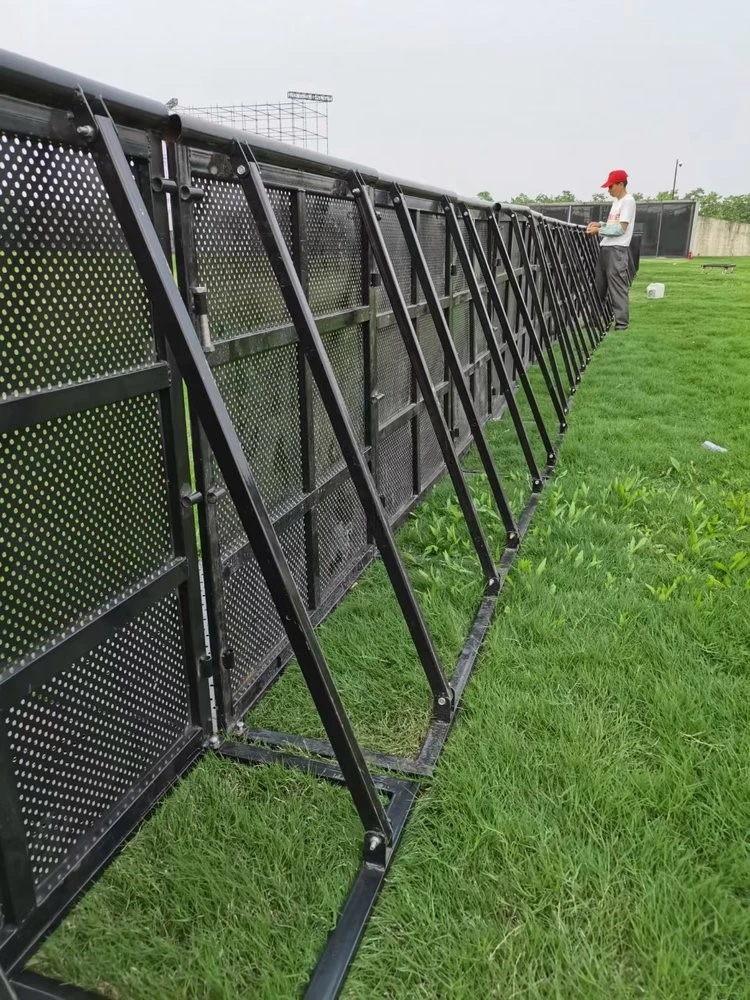

Supports both linear and corner layouts. Can be equipped with counterweights, floor-anchoring hardware, and reflective warning strips. Dimensions, colors, and materials can be customized to meet specific project requirements.

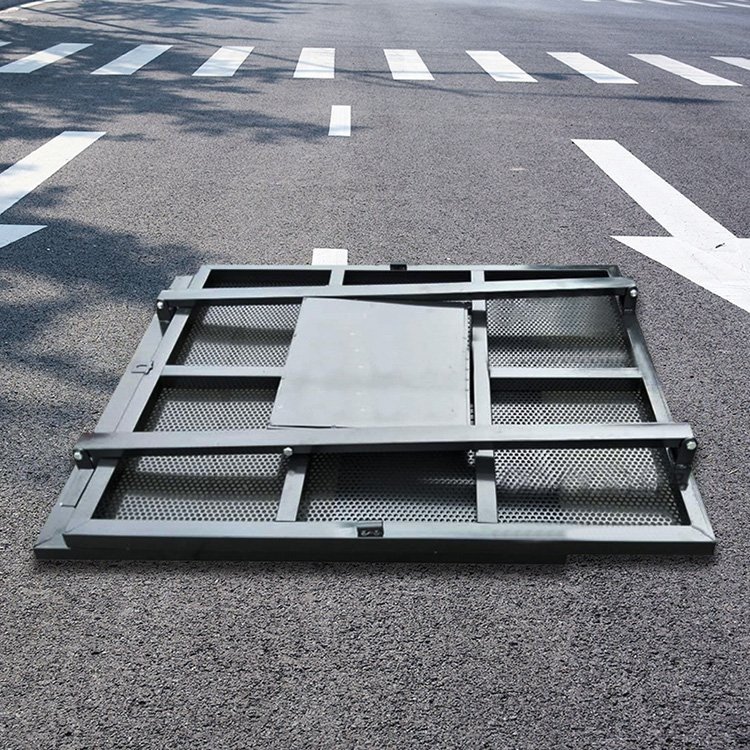

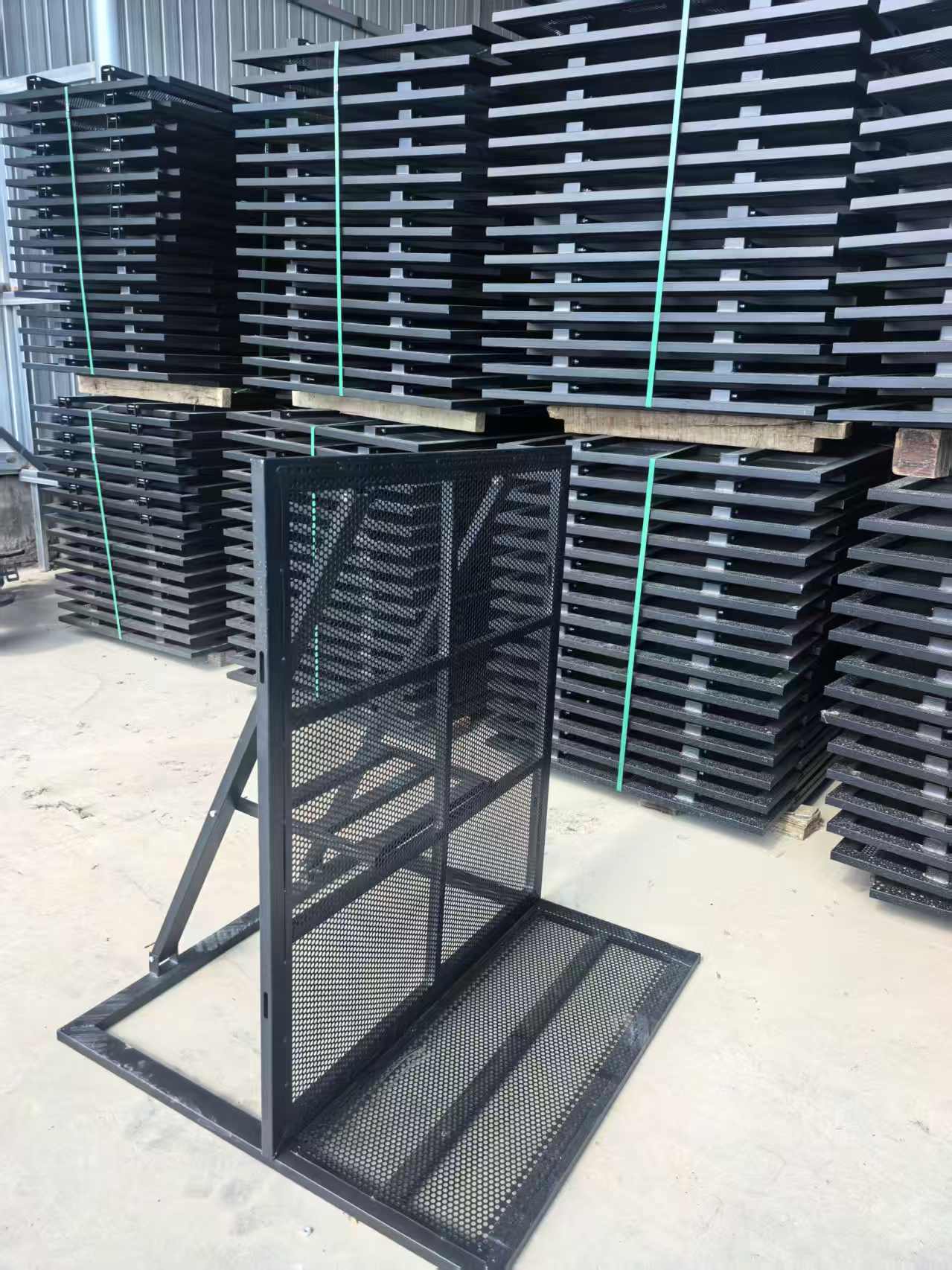

Stackable for Storage and Transport-Ideal for Rental and Reusable Applications
The panels are designed to be stacked, optimizing storage and transport space. This makes them an excellent choice for event security, rental companies, and projects requiring frequent relocation or reuse.
Difference Between a Standard Crowd Control Barricade and a Heavy-Duty Anti-Riot Barrier
|
Comparison Item |
Standard Crowd Control Barricade |
Nocheng Crowd Control Barricade / Heavy-Duty Anti-Riot Barrier |
|
Frame structure |
Conventional tubing |
Thickened square/round tubes with triangular support reinforcement |
|
Base |
Standard base |
1080mm triangular widened base |
|
Panel |
Standard mesh/grating |
Perforated steel plate for ventilation and pressure relief |
|
Connection |
Standard hooks/ties |
N-type stainless steel pins for linked locking |
|
Stability |
Single-panel temporary separation |
Linked panels with counterweights/ground anchoring improve overall stability |
|
Deployment |
Conventional handling |
Pin-connected assembly, no bolts or welding required |
|
Storage and transport |
Takes up more space |
Single panels stackable, suitable for repeated turnover |
|
Application |
General separation |
Large events, factory areas, oil depots, venues, temporary security zones |
Application Scenarios

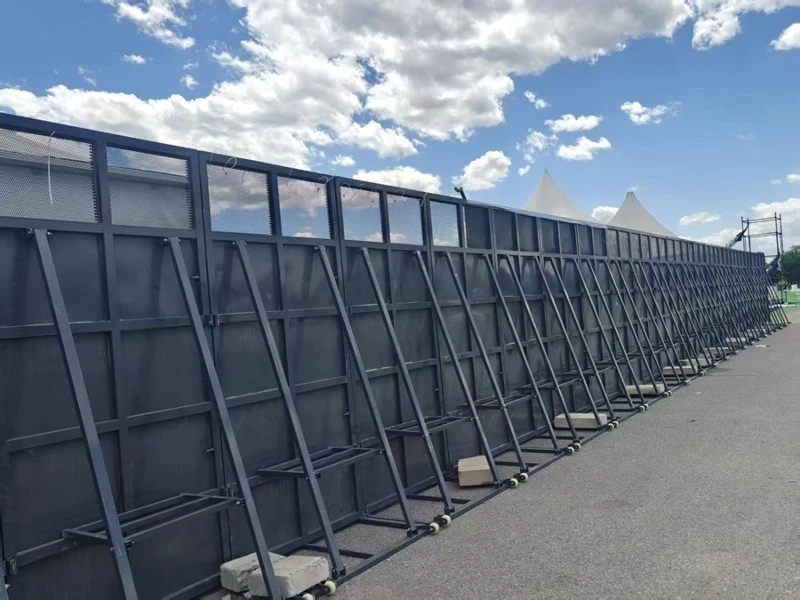

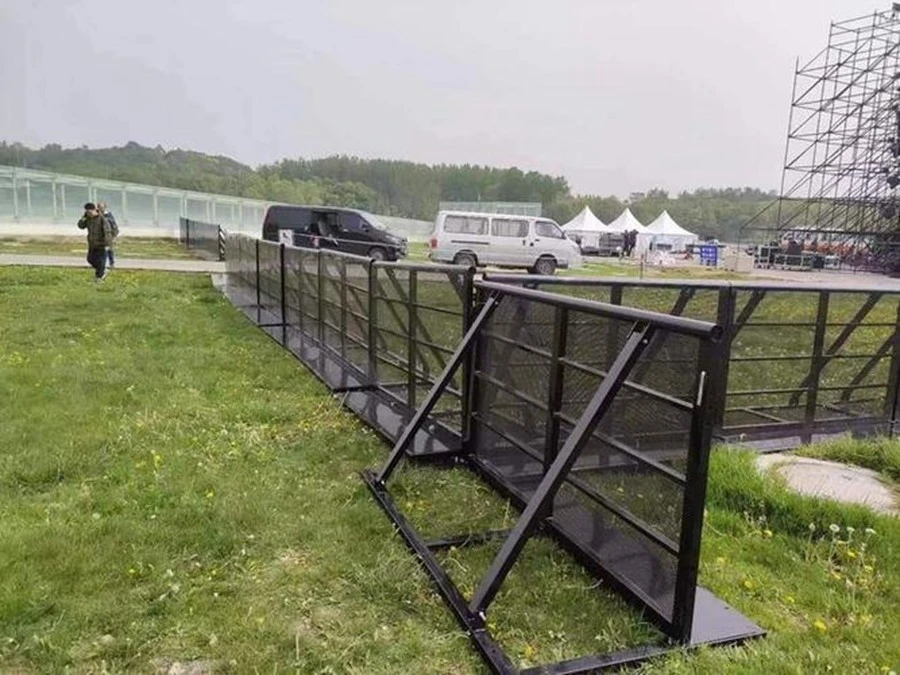

Security for large-scale events, concerts, and sporting events

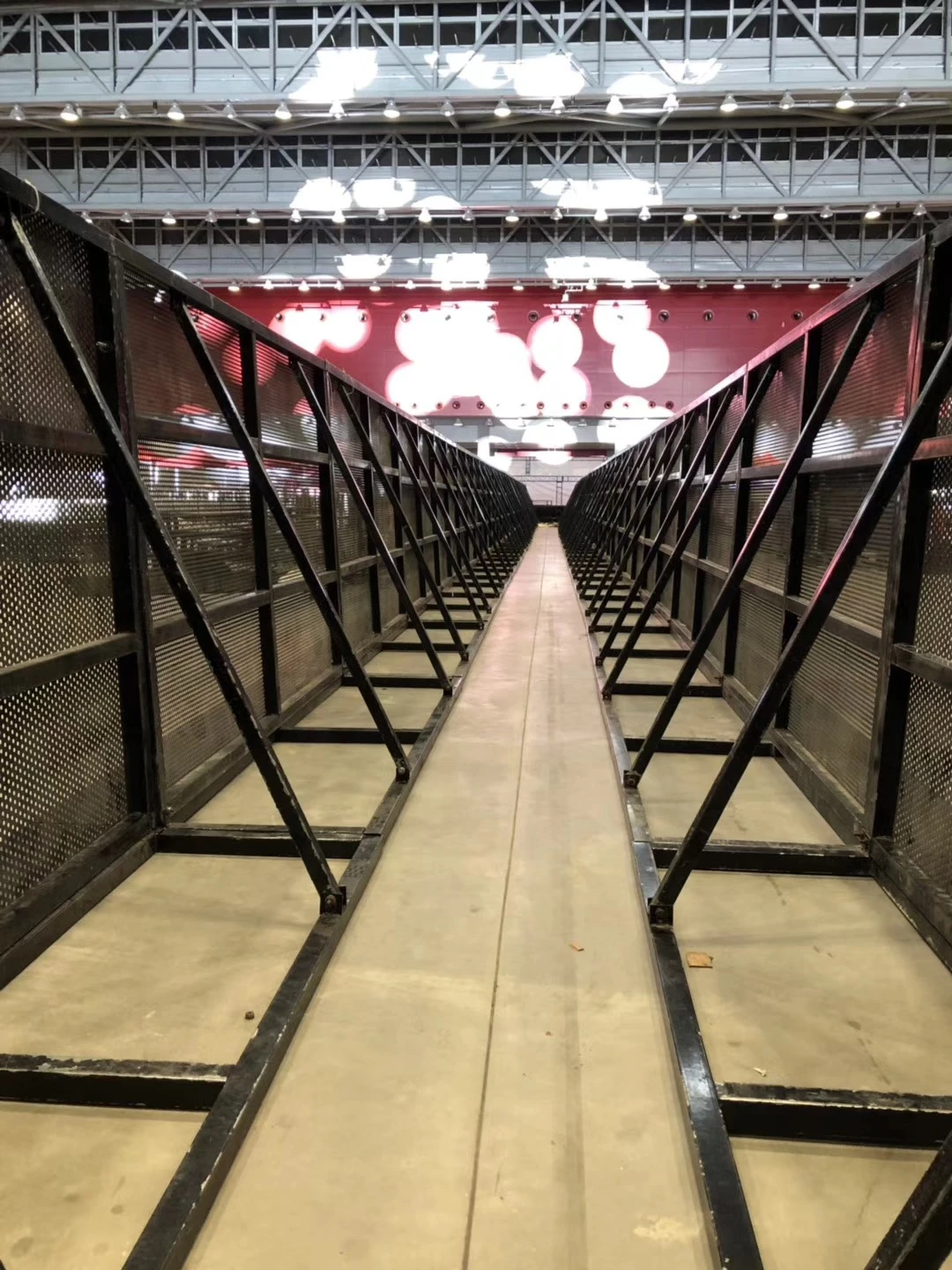

Buffer zones for venue security checks and temporary restricted areas
Industrial site perimeters, temporary zoning, and construction site partitioning
Temporary isolation around oil depots, chemical parks, and areas with flammable or explosive materials
Temporary access control for ports, power facilities, transport hubs, and municipal services
Temporary roadside cordons and rental/leasing operations
Quality and Delivery
Quality Control
Upon arrival at the facility, raw materials-including Q235 steel pipes, perforated steel panels, locking pins, counterweights, and base anchors-are inspected for specifications, wall thickness, visual condition, and quantity. During production, key checks are performed on cutting dimensions, weld quality, the width of triangular bases, square pipe specifications, the positioning and thickness of holes in perforated panels, and the alignment of locking pin holes. Before shipment, a final inspection covers overall dimensions, the weight of individual units, the integrity of inter-unit locking mechanisms, the quality of the powder-coated finish, the completeness of accessory sets, and packaging status. Shipments are arranged only after confirming full compliance with order specifications.
Delivery Assurance
Once an order is confirmed, the delivery timeline is established based on quantity, dimensions, color, material, and surface treatment; progress updates are provided regularly throughout the production phase. Prior to dispatch, the quantities of all products and accessories are verified. Individual units are stacked and packaged, while locking pins, counterweights, base anchors, and reflective strips are packed separately to minimize the risk of damage during transit. We can coordinate both sea and air freight, and we will ensure that documentation, shipping marks, and packaging meet the client's specific requirements.
After-Sales Support
We respond to all after-sales inquiries within 24 hours. Products found to have quality defects within the warranty period will be replaced free of charge. We are also available to provide guidance on installation, the configuration of interconnected units, the placement of counterweights, and the securing of base anchors. Specific details regarding the scope of the warranty, delivery timelines, and custom configurations are governed by the final order confirmation.
FAQ
Q: How should I choose the surface finish for crowd control barricade?
A: Standard options include electrostatic powder coating. For long-term outdoor use or corrosive environments, we offer a dual-layer anti-corrosion treatment: hot-dip galvanizing followed by powder coating.
Q: How are minimum order quantities (MOQ), lead times, and samples determined?
A: These depend on order volume, dimensions, color, and configuration. Please contact our sales team to receive a quote and information regarding samples.
Q: Can one person install them?
A: The units use a pin-based connection system-no bolts or welding required-allowing a single person to assemble or disassemble the barriers. Each unit weighs approximately 55 kg; we recommend that two people handle the movement, or that appropriate handling equipment be used.
