The Anti Drone Net serves as a passive, physical barrier for low-altitude protection. Constructed from 304/316L stainless steel wire rope joined by clips-eliminating the need for welds-it is designed to defend against impacts from "low, slow, and small" (LSS) drones, as well as the force of drone-borne explosives. The mesh functions by entangling drone propellers to halt intrusions, while also resisting the impact of explosive fragments to mitigate blast damage. Its flexible, mesh-based structure offers high resistance to impact and cutting, along with excellent corrosion resistance, low wind resistance, and high visibility. With no welded joints, the structure remains intact even if localized damage occurs, preventing total collapse. It is ideal for securing the airspace above critical facilities and can be installed as a permanent fixture or rapidly deployed using a modular setup.
Why choose the Nuocheng Anti Drone Net?

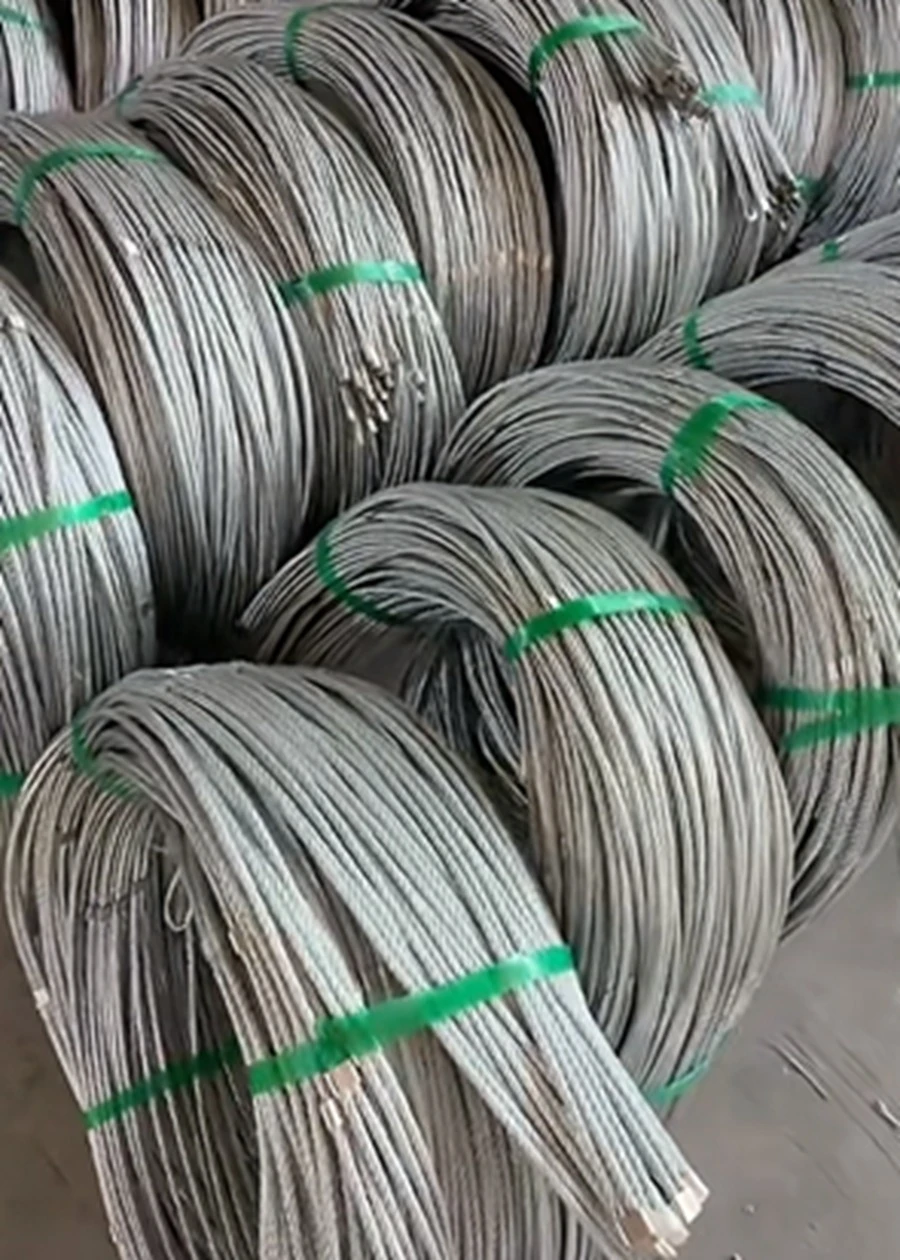

304/316L Interlocked Stainless Steel Wire Rope (Weld-Free Design)
Utilizing a weld-free interlocking process, this system eliminates weak points associated with welding. In the event of localized damage, the stress does not propagate; furthermore, unlike rigid protective barriers, it does not generate secondary debris or fragments upon impact.
Purely Physical, Passive Protection (No Electromagnetic Interference)
Operating via a purely physical barrier mechanism, the system emits no radio-frequency signals and causes no interference with sensitive electromagnetic environments. It is ideally suited as a physical interception layer within a multi-layered security system.
Anti-Entanglement and Fragment Resistance

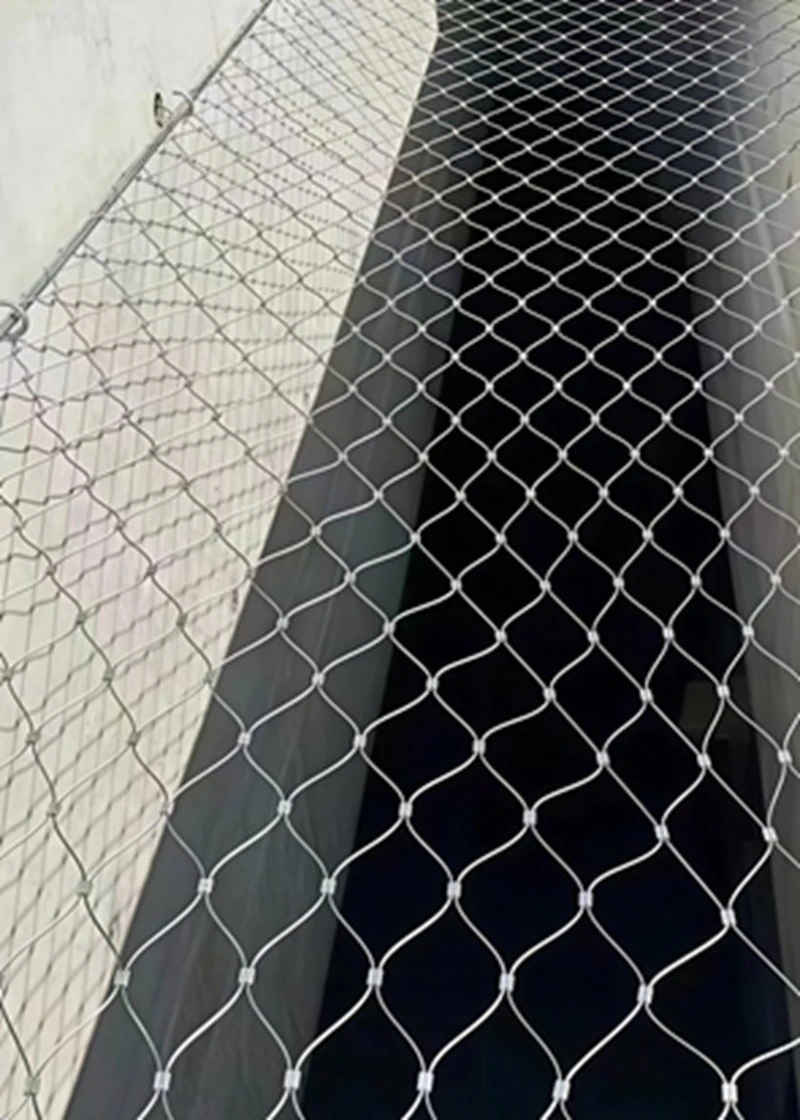

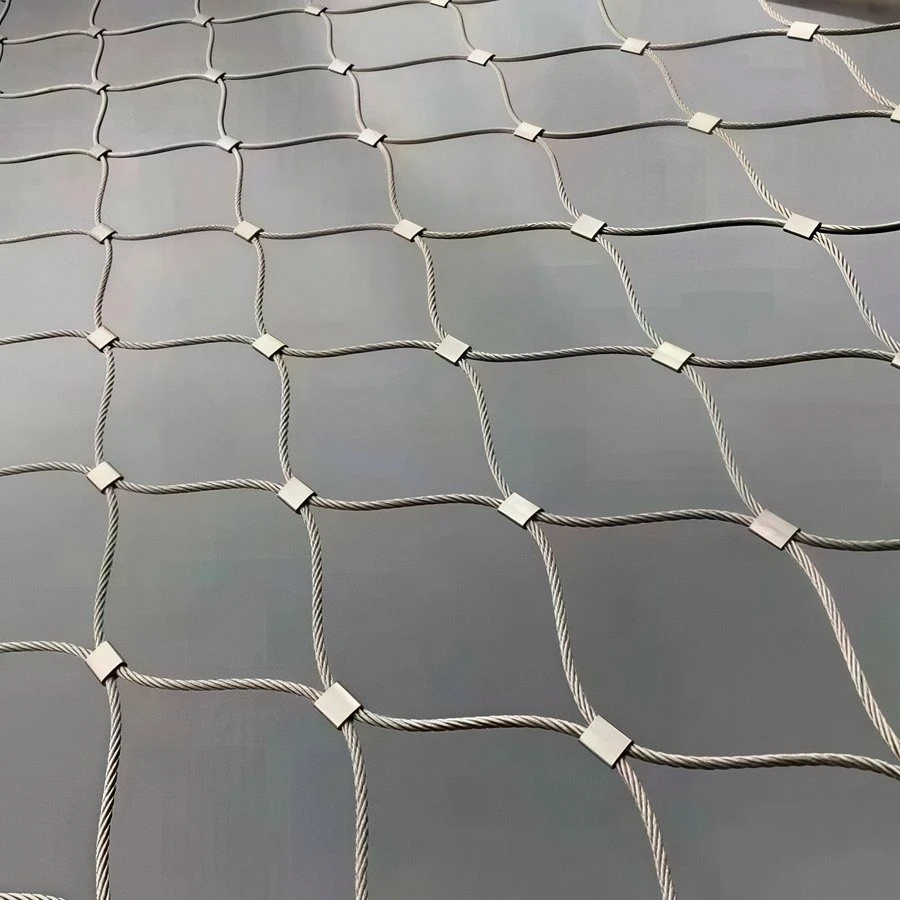

The diamond-shaped mesh structure evenly distributes impact forces. Drone rotors that strike the mesh are easily entangled and immobilized, while the high-cut-resistance material effectively withstands the tearing and pulling forces of explosive fragments.
Low Wind Resistance and High Concealment
The design features fine, matte-finish wires, ensuring excellent concealment from a distance. The system's minimal wind load significantly reduces the structural stress placed on supporting steel columns and foundations.
Fully Customizable Specifications
Wire rope diameter, mesh aperture size, and overall dimensions can be tailored to specific requirements. The 316L variant is engineered for highly corrosive environments, making it suitable for harsh conditions such as coastal areas or chemical industrial sites.
Permanent Installation and Modular Rapid Deployment
Compatible with steel structural columns, tension cables, and suspension mounting systems, the mesh supports both long-term fixed installations and rapid, temporary deployments.
This product serves as a passive physical barrier for low-altitude protection, designed to intercept and impede "low, slow, and small" (LSS) drones while mitigating damage from explosive fragments. The actual level of protection depends on factors such as rope diameter, mesh size, installation height, configuration, and site-specific conditions; the final solution should be determined based on the requirements of the specific project.
Product Specifications
|
Item |
Specifications |
|
Main material |
304 stainless steel / 316L stainless steel (optional) |
|
Wire rope structure |
7×7, 7×19 multi-strand wire rope, clip-woven (no welding) |
|
Wire rope diameter |
1.0mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm (standard options, customizable) |
|
Mesh shape |
Diamond mesh |
|
Standard mesh size |
50×50mm, 60×60mm, 80×80mm, 100×100mm, 120×120mm |
|
Minimum breaking force of single wire rope |
2.4mm rope ≥4.18kN; 3.2mm rope ≥7.38kN |
|
Operating temperature range |
-30°C to +80°C |
|
Salt spray performance |
304: neutral salt spray ≥500h; 316L: neutral salt spray ≥1000h |
|
Standard full net dimensions |
5m×5m, 10m×10m, 10m×20m, 20m×30m; length and width customizable |
|
Unit weight |
Approx. 0.8–2.2kg/㎡ (varies with rope diameter and mesh size) |
|
Interception performance |
Designed to intercept low, slow and small UAVs flying at speeds ≤120km/h and to obstruct FPV drones |
|
Installation method |
Steel structure columns + wire rope guy cables + stainless steel clips/rings for fixing; modular assembly |
|
Applications |
Low-altitude protection for oil depots, substations, chemical plants, camps, airports, government/party venues, nuclear power plants, and warehouse explosion-proof areas |
Structural comparison with common low-altitude interception solutions
|
Comparison Dimension |
Anti Drone Net (Nocheng) |
Ordinary Rope Net / Knotted Net |
Rigid Barrier / Metal Panel Mesh |
|
Material |
304/316L stainless steel wire rope |
Aramid, PE, polypropylene, etc. |
Steel plate, aluminum plate, rigid fence |
|
Weaving method |
Clip-woven, no welded break points |
Knotted or knotless weaving |
Welded / stamped |
|
After local damage |
Breach does not propagate; the net does not collapse as a whole |
Knots may slip; breach tends to expand |
May generate secondary fragments |
|
Blast pressure relief |
Flexible mesh relieves pressure and reduces blast wave damage |
Depends on material |
Rigid surface reflects blast wave |
|
Weather and corrosion resistance |
304/316L stainless steel, salt spray 500–1000h |
Polymer materials subject to UV aging |
Relies on coating or plating |
|
Wind resistance and visibility |
Low wind resistance; fine matte ropes for low visibility |
Medium to relatively high |
High wind resistance and high visibility |
|
Application scenarios |
Permanent/temporary airspace containment over key sites |
Temporary or low-cost scenarios |
Ground perimeter; not suitable for low-altitude containment |
System Composition and Installation Components
Mesh Specs
You can get this in either 304 or 316L stainless steel wire rope mesh, featuring a diamond-patterned opening. We can customize the mesh opening size, wire rope thickness, and total dimensions to fit your project's needs.
01
Support Structure
This can be set up with steel posts, tension cables, diagonal bracing, and tensioning tools. The height and spacing of the posts, along with other structural details, are based on how far apart they'll be and how much weight they need to handle.
02
Anchoring Options
You've got choices like concrete bases, embedded parts, ground anchors, or counterweights. Before you buy, just make sure to check the ground conditions and anchoring needs, and see if you need a separate support structure.
03
Connection Hardware
We offer ferrules, eye bolts, connectors, and tensioners. When you're inquiring, please let us know the quantities you need and the project scope so we can ensure everything is compatible for installation.
04
Installation Conditions
If you're connecting this to existing fences, light poles, or buildings, please give us the on-site measurements and drawings to confirm where the connections will be and how the installation will work.
05
Manufacturing Capabilities
Our production base features dedicated zones for different product categories-including wire mesh, fencing, high-transparency mesh, barbecue grills, and barbed wire-while blast-resistant barriers and stainless steel anti-drone netting are manufactured on a made-to-order basis. Production processes for each category are kept separate, which streamlines the handling of multi-item orders and ensures unified delivery.
For custom requirements, blast-resistant barriers can be tailored in terms of dimensions, color, material, and surface finish. Anti-drone netting can be customized by rope diameter, mesh aperture, and overall dimensions; we offer both 304 and 316L stainless steel options, and can also supply all necessary accessories, such as clips, lifting rings, connectors, and tension cables.
Every batch undergoes at least three stages of inspection-incoming material, in-process, and pre-shipment-to ensure full compliance with order specifications before dispatch. Regarding packaging, blast-resistant barriers are stacked, anti-drone netting is folded or rolled, and accessories are packed separately. We can facilitate both sea and air freight, with documentation, shipping marks, and packaging specifications all tailored to meet the client's requirements.
FAQ
Q: Which one should I pick, 316L or 304?
A: If you're looking at regular outdoor settings or standard industrial areas, 304 stainless steel should do the trick. But if you're in a coastal region or a chemical industrial park, or anywhere with lots of salt or acidic and alkaline conditions, go with 316L. It has better long-term corrosion resistance and can handle neutral salt-mist for over 1,000 hours, which is pretty impressive.
Q: Can I just get the mesh, or do I need to buy supporting posts too?
A: You can definitely get just the mesh, along with the essential connectors like clips and suspension rings, so you can find your own posts and supports. But if you prefer, we can also set you up with a full package that includes posts, cables, and tensioning systems tailored to what your project needs.
Q: What's the deal with service life and maintenance costs?
A: This system is made for outdoor use and lasts over 10 years. It holds up well against rain, snow, dust, and extreme temperatures. For maintenance, you mainly just need to check that the clips are tight, the cables have the right tension, and look for any damage on the mesh. Overall, maintenance costs are pretty low; if you notice any damage in a specific area, you can replace or fix just that part without needing to take down the whole mesh system.
